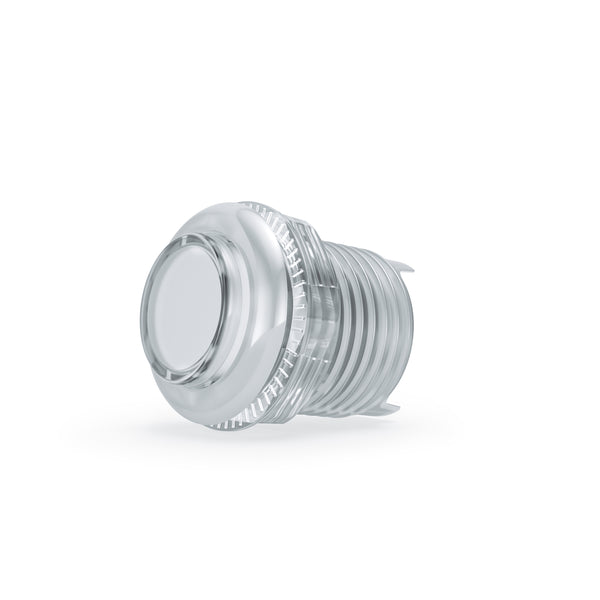

The most advanced dedicated arcade button is now available!
Exclusive to RPEG Electronics and Designed in collaboration with Qanba! One of the world leaders in fight stick and arcade gaming technology.
Full Addressable 5V RGB lighting!
Use our dedicated RPEG x Brook Encoder board for full reactive function and LED color profiles.
Also compatible with any standard WS2811 LED controller.
Easily wires with our dedicated LED harness for up to 13 buttons per player (Sold Separately)
Buttons can also be used without LED function simply by connecting the standard .110 spade connections to your existing encoder board.
Fits 28mm hole wooden or MDF arcade panels and fight sticks. Depth requirement is 34mm which includes the thickness of the panel.
Lock in with simple screw nuts.
Compatible with arcade1UP , Gameroomsolutions , extremehomearcade , and more!
2 Different tournament grade switch options available

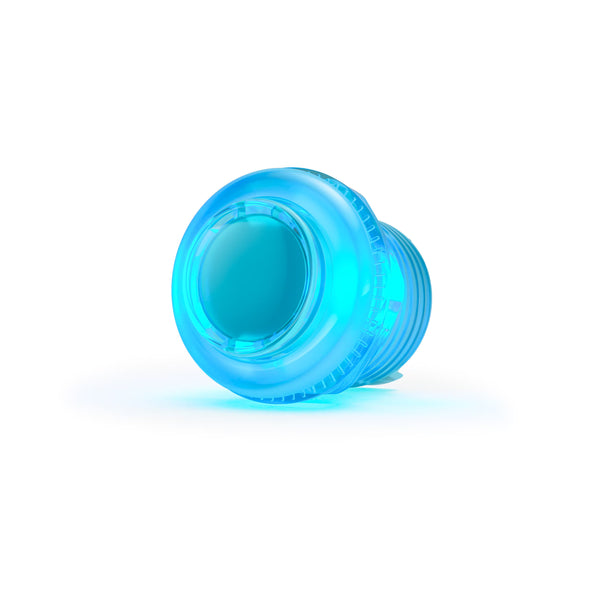

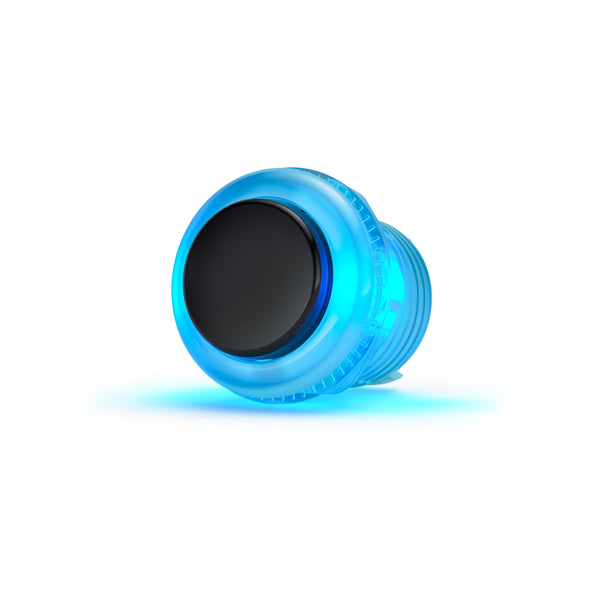

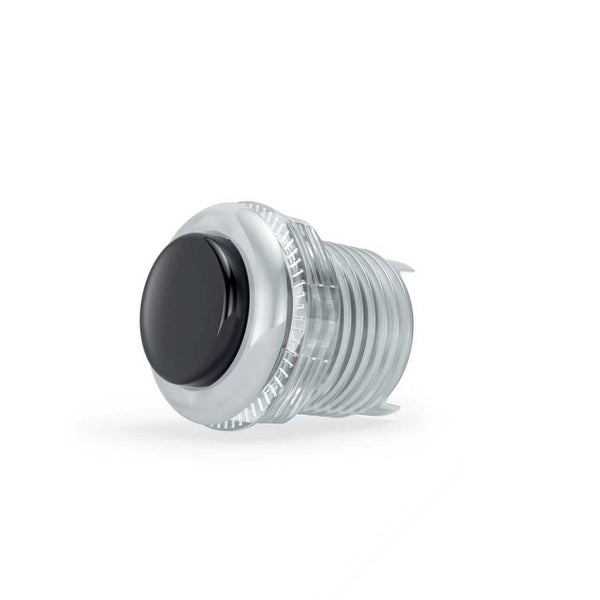

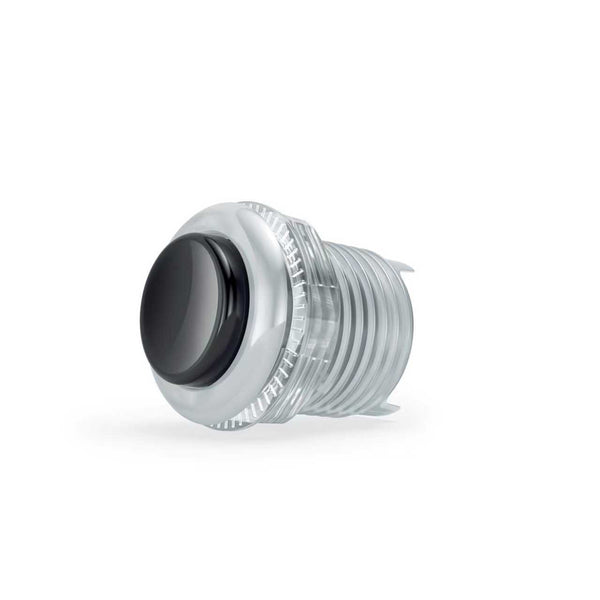

Cherry MX Silver Switch:
- Speedy and light clicky feeling for that classic arcade experience without the finger strain!
- Ultra bright edge lit LEDS
- Available in Clear or Eclipse options,
- Concave (dished classic arcade style) or Convex (Flat modern Japanese style) Caps.

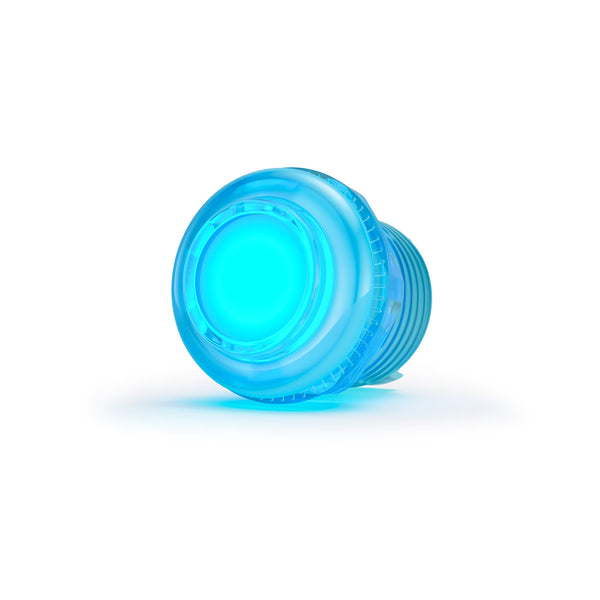

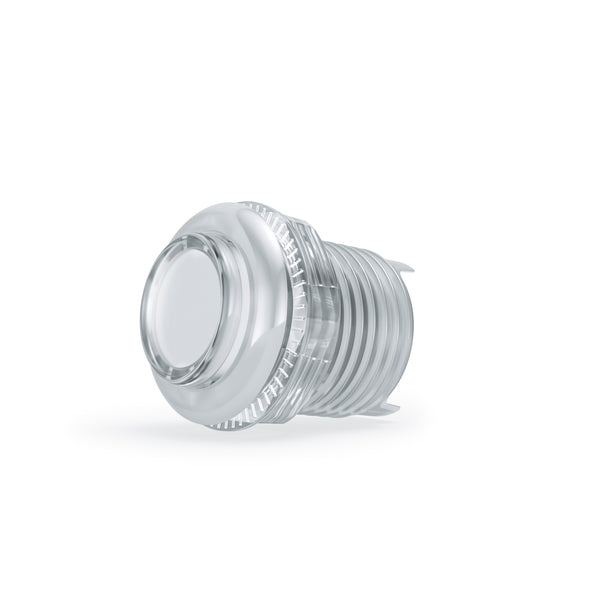

Omrom Silent Switch:
- Custom exclusive Omrom ultra smooth silent keyboard switches.
- Center LED lit, great for installing custom artwork
- Available in Clear only
- Concave (domed) or Convex (Flat) Caps.

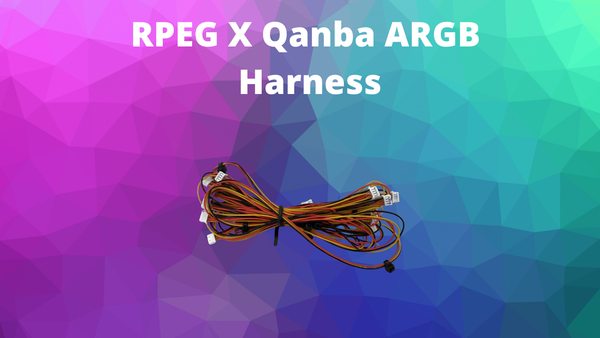

LED Harness
- Quickly connect up at 13 buttons per player.
- Direct Plugs into our RPEG x Brooks Encoder (Sold Seperately)
- Also works with 3rd party 5v controllers.
- RED - VCC, Black - Ground , Yellow - Data.
- Can be used with WLED , simple remote controllers, GP-2040 Fighting Board (will need to cut and swap the yellow and black wires)
- Use 1 harness per player. If the player has less than 8 action buttons, the wires can easily be cut and reconnected.
